Addfield SB
The smallest of the batch-loading dual-chamber machines, taking 750 kg in a single load. Suited to a property whose daily waste fits one burn.
- Load capacity
- 750 kg per batch
- Chamber volume
- 1.54 m³
- Chamber
- 1.6 × 1.1 × 0.93 m
- Manufacturer
- Addfield · United Kingdom

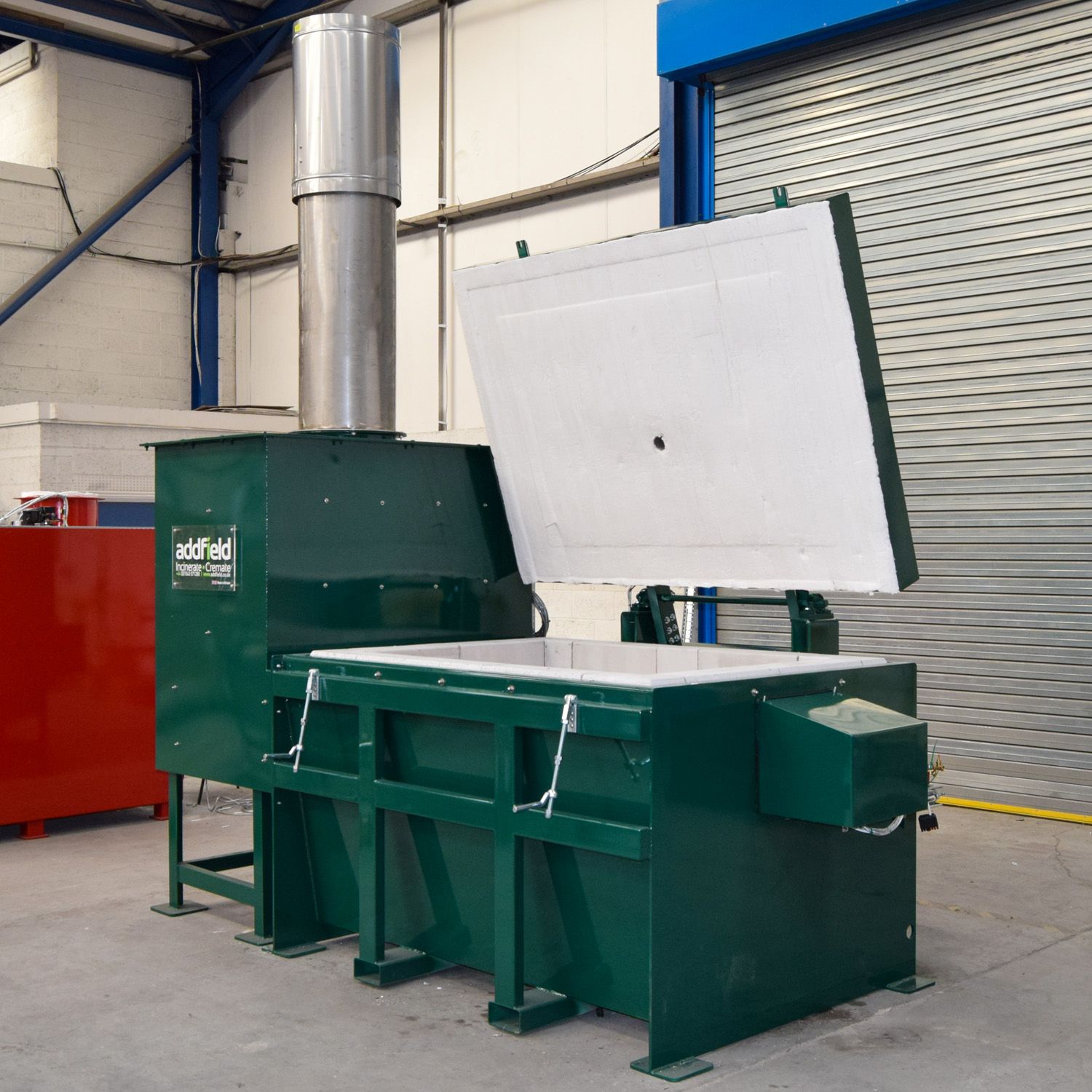

The counterbalanced lid raised, showing the refractory fibre insulation on its underside.

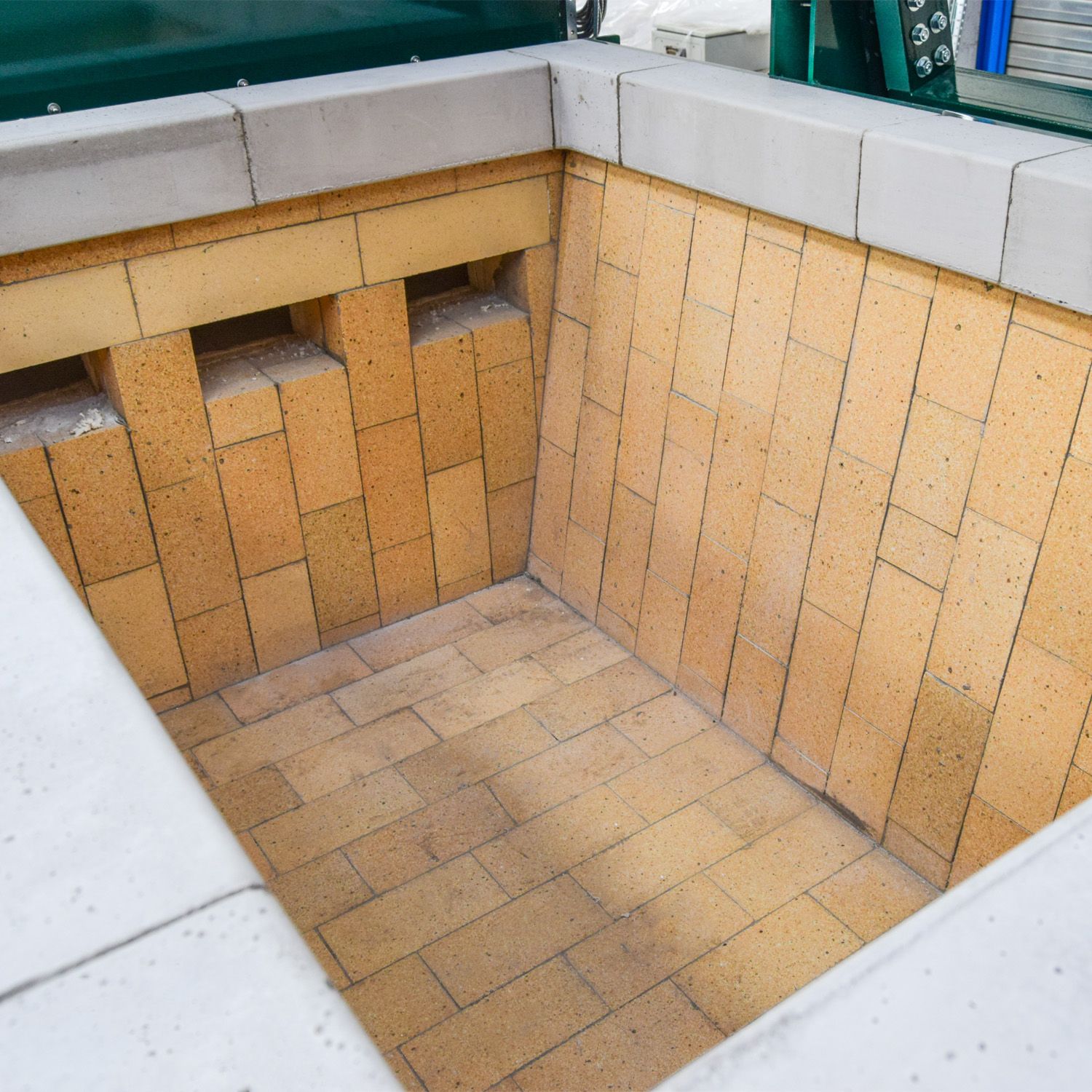

Inside the primary chamber: interlocking firebrick, and the pre-cast block rim that takes the impact of loading.
The control panel, mounted on the machine within reach of the loading chamber.

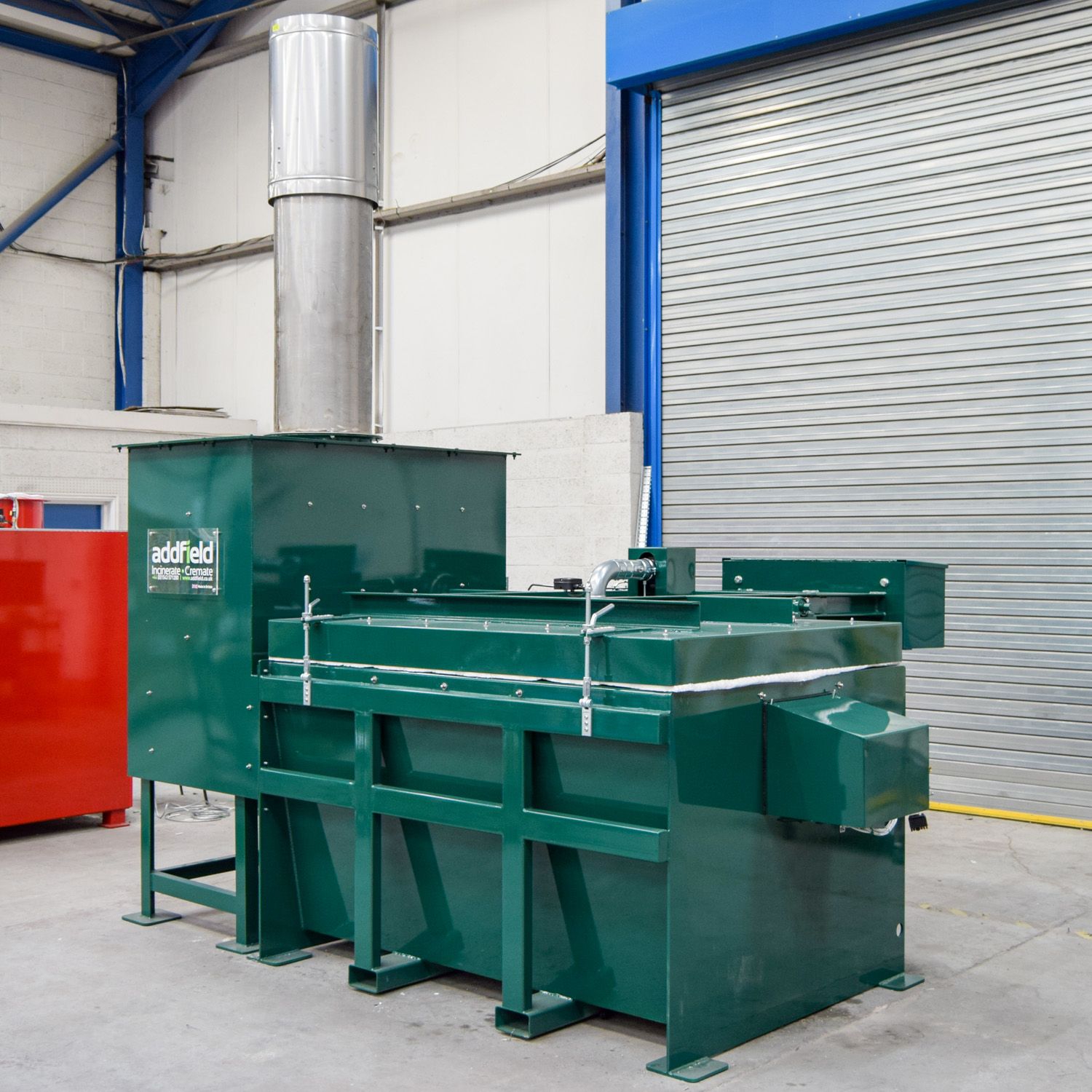

The full machine from three-quarters, giving the footprint a waste room has to allow for.
How it works
A top-loading batch machine. Waste goes in through the lid — by hand, by digger, or by hydraulic bin tipper — and burns in a primary chamber lined 180 mm deep in high-alumina firebrick rated to 1,450 °C. Above it a secondary chamber holds the flue gases at a minimum of 850 °C for two seconds before anything reaches the stack.
On an island property that second chamber is the part that matters. The plant sits within sight and smell of guest accommodation, and two seconds at temperature is what stands between a working waste room and a complaint.
It runs one load a day. Waste is loaded before the burn rather than topped up during it, and the ash — about 3% of what went in — is cleared before the next load. That daily rhythm is what a waste room has to be sized around, so it is the figure to check your own volumes against before choosing between this and the larger TB.
- A primary chamber lined 180 mm deep in interlocking high-alumina firebrick over insulation board and insulating brick — the multi-layer lining Addfield credit for a 40% cut in fuel consumption against comparable machines.
- A pre-cast block impact zone in the loading chamber, taking the hit of loading so the refractory behind it does not.
- A counterbalanced lid insulated with refractory fibre: light enough to work by hand, and sealing tightly enough to keep the heat in the chamber.
- A secondary chamber holding the flue gases at a minimum of 850 °C for two seconds, with its own burner, air fans and temperature sensor.
- Temperature-controlled burners on both chambers, switching against that sensor rather than running continuously.
- A control panel with push-button and touch-screen operation, pre-programmed and adjustable on site.
- 8 mm and 10 mm seam-welded mild steel casing, finished in a two-pack paint system.
Built to order, not standard supply
- Bin tipper — electro-hydraulic, lifting and tipping over 150 kg so a load goes in hands-free.
- Fuel tank, 1,000 to 5,000 litres, for a site with no permanent fuel supply or as a backup to one.
- Data logging on the control panel, where burn records have to be kept automatically.
- De-ashing doors, mechanically loading lids, and alternate loading arrangements, built to order.
Addfield builds these to order. Ask GreenWave for them at enquiry — they are specified before the machine is made, not fitted afterwards.
Full specification
Every figure below is Addfield’s. The datasheet is their own document, published here in full.
Download the datasheetPDF, 1.4 MB · published by Addfield
- Load capacity
- 750 kg per batch
- Chamber volume
- 1.54 m³
- Chamber
- 1.6 × 1.1 × 0.93 m
- Loading
- Top
- Refractory
- 180 mm
- Fuel
- Diesel, LPG, natural gas or bio fuel
- Gas retention
- 2 seconds
- Afterburn
- Complies with EU legislation
- Type approval
- Defra, to EU Animal By-Products Regulations 142/2011
- Burn rate
- Under 50 kg/hour
- Secondary chamber
- 850 °C minimum, 2-second retention
- Thermal capacity
- 144 kW
- External size
- 3,425 × 2,890 × 2,095 mm
- Height with stack
- 3,980 mm
- Door aperture
- 1,565 × 1,070 mm
- Weight
- 3.6 tonnes
- Power supply
- 220–240 V single phase, 50/60 Hz
- Refractory rating
- 1,450 °C
- Fire brick
- Grade E23, 42.5% alumina
- Insulation board
- 25 mm
- Ash residue
- About 3% of the loaded volume
- Certification
- UKCA · CE · Defra approved · ISO 9001:2015 · ISO 14001:2015
The specification, against the rest of the range
Rows here are the figures more than one machine quotes. 5 further figures are quoted for the Addfield SB alone and are in the full specification above. Figures for Addfield SB are Addfield’s published specification. See the manufacturer’s sheet. Confirm the figures that decide a purchase with GreenWave before ordering.
What GreenWave supplies
- Installation, testing and commissioning
- Operator training and warranty
- After-sales technical support and spare parts
Delivered to 2 properties
- Alila Kothaifaru MaldivesRaa Atoll80-Room Resort
- Cora Cora MaldivesRaa Atoll100-Villa Resort
Case study · Addfield · 2021–22
Environmentally sustainable incineration in the Maldives
Addfield’s own account of putting SB and TB incinerators onto Maldivian resort islands. It is worth reading for the conditions rather than the sales copy: resort waste arrives mixed rather than as the single stream these machines are usually specified against, so the commissioning visit in February 2022 was spent tuning the burn for that mix — and on an island where smoke or odour reaches the guests, that tuning is the difference between a working plant and a complaint.
Read the case study- SB series
- 750 kg/day
- TB series
- 1,300 kg/day
- Waste stream
- Mixed organic and inorganic
- Commissioned
- February 2022, on site
Addfield credit their regional agent Hydro Global, which shares ownership with GreenWave, for the installations described. GreenWave’s own installations are listed above and in the project register.
Is the Addfield SB the right size for your property?
Every installation includes
- Installation, testing and commissioning
- Operator training and warranty
- AMC, spare parts and after-sales technical support
