Addfield TB
The mid-range batch machine at 1,300 kg a load, and the series most often specified for a full resort operation.
- Load capacity
- 1,300 kg per batch
- Chamber volume
- 2.3 m³
- Chamber
- 2.45 × 1.1 × 0.92 m
- Manufacturer
- Addfield · United Kingdom

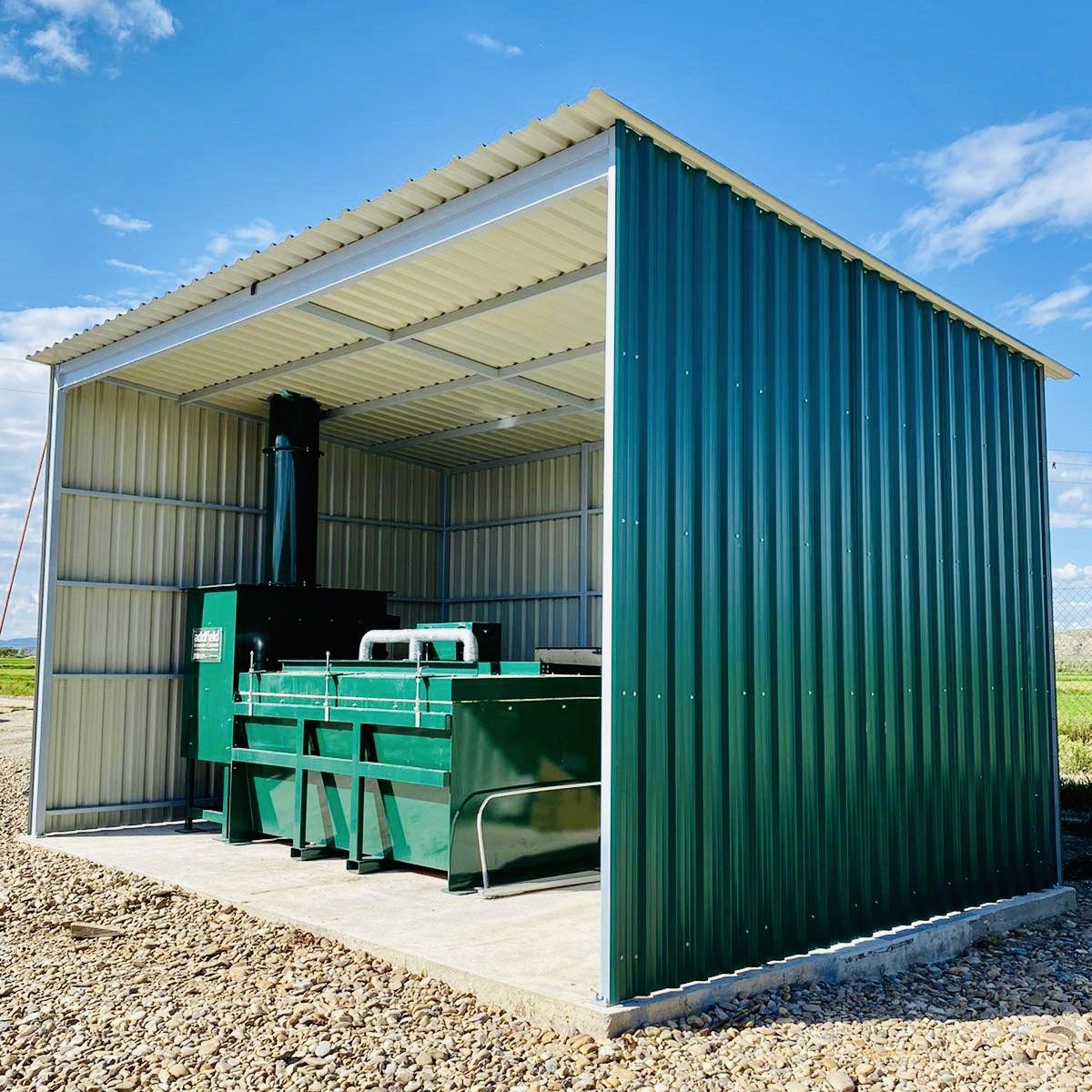

A TB installed on a concrete pad under an open-sided weather shelter, with the stack carried through the roof.

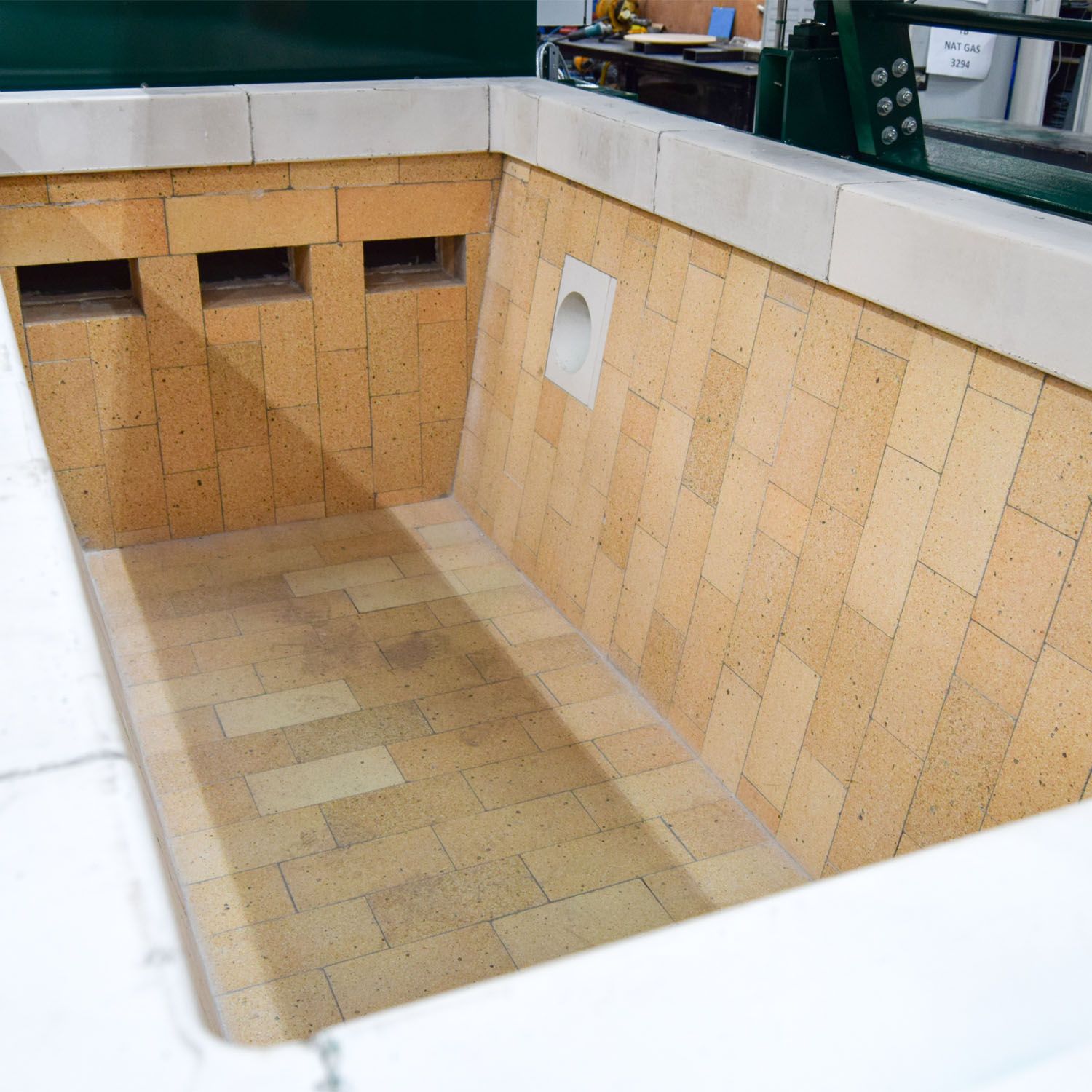

Inside the primary chamber: interlocking firebrick, the burner port in the side wall, and the pre-cast rim that takes the impact of loading.

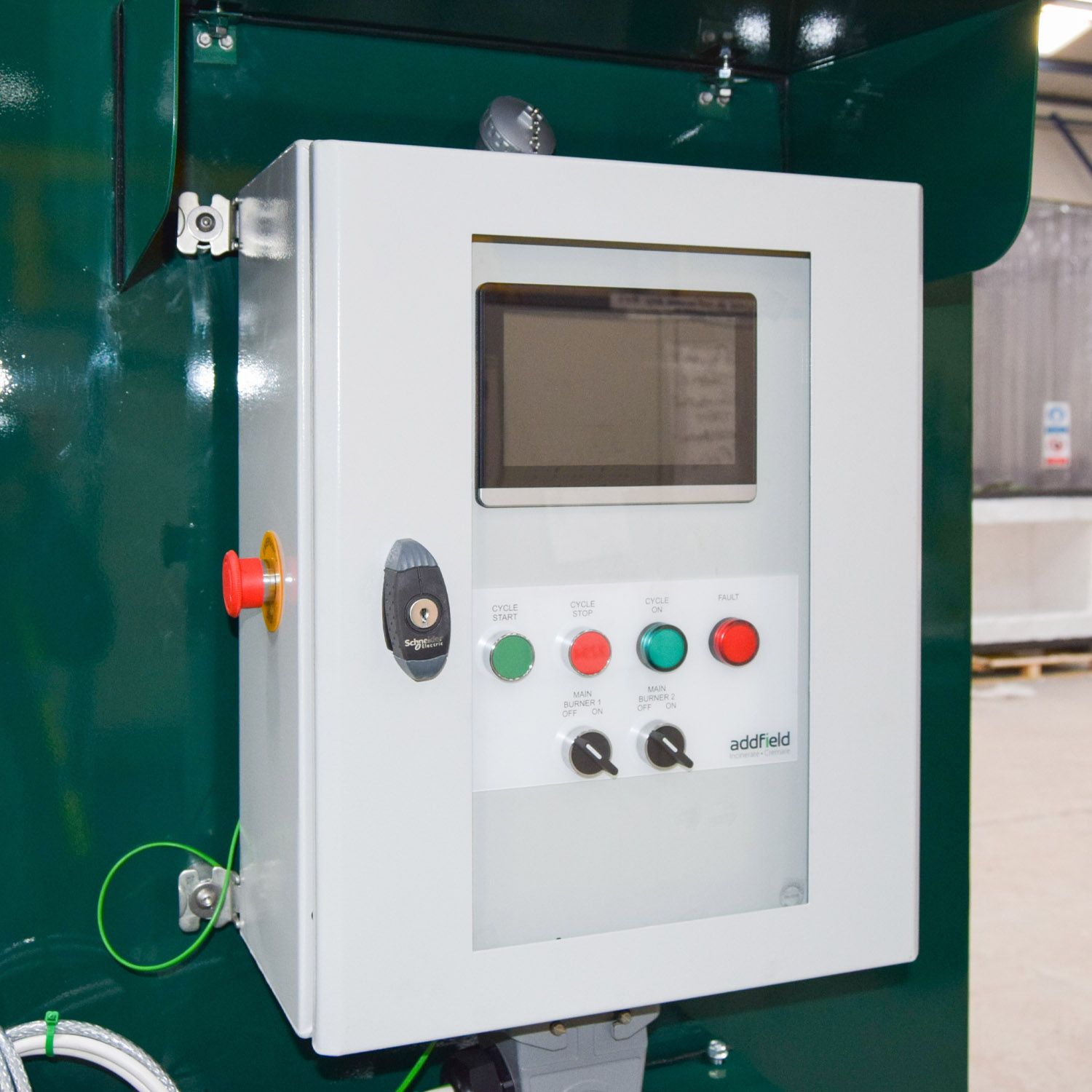

The control panel — touch screen above, cycle controls and a selector for each of the two main burners below.

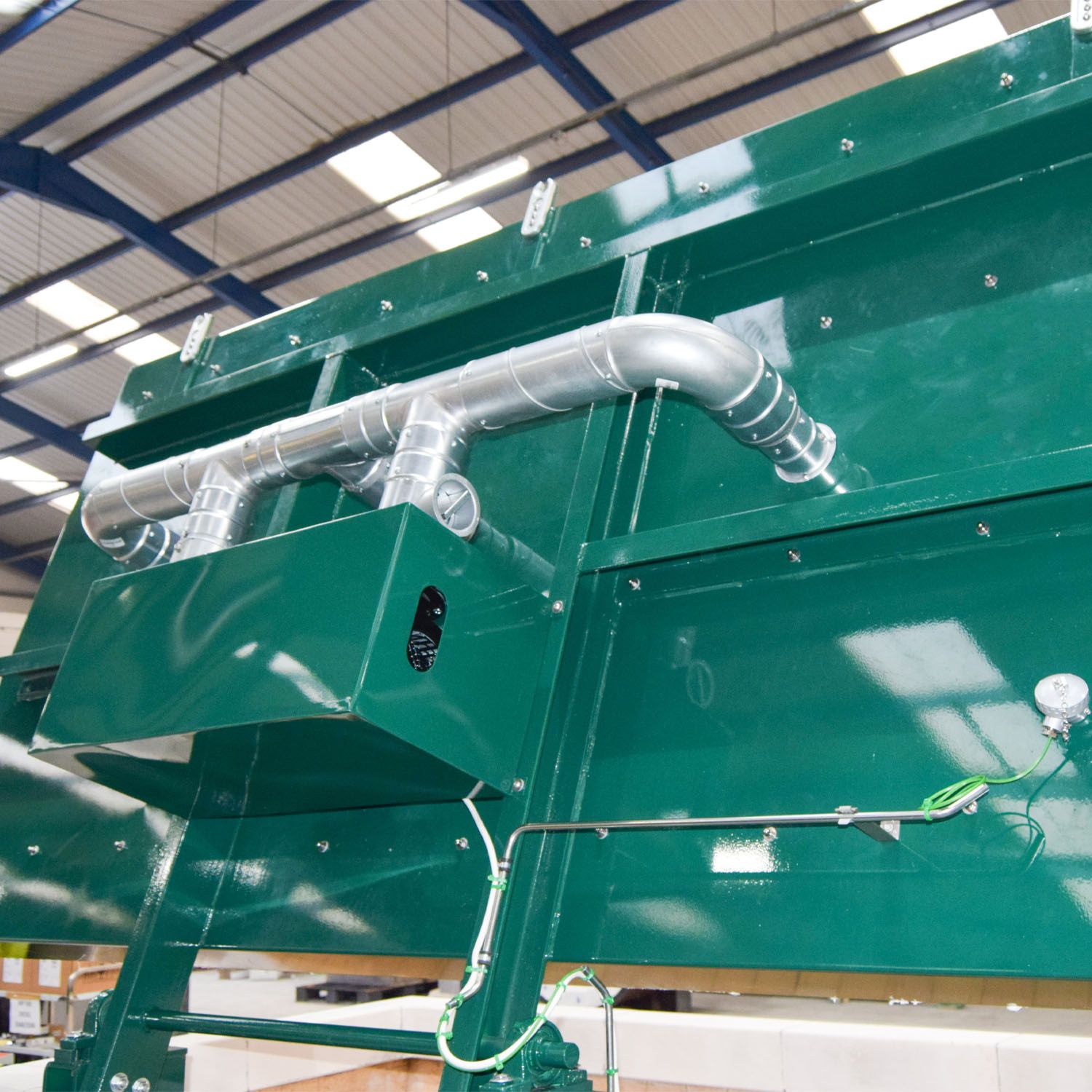

Combustion air ducting along the top of the machine, feeding the fans that distribute air to each chamber.
How it works
The larger of the two batch machines, taking 1,300 kg in a single load against the SB’s 750 kg. It works the same way — top loading into a primary chamber lined 180 mm deep in high-alumina firebrick, with a secondary chamber above it holding the flue gases at a minimum of 850 °C for two seconds — but at nearly twice the chamber volume and 4.8 tonnes on the pad.
It also loads differently. A heavy-duty ram guard across the front takes the knocks of loading with a JCB or telehandler, which is what a property moves waste with when a load is measured in tonnes rather than bins.
The choice between this and the SB is one number: what your property generates in a day. Both run one load daily, so a resort producing more than 750 kg is either buying the TB or running the smaller machine twice — and a second burn is a second day of fuel and an operator’s afternoon.
- A primary chamber lined 180 mm deep in interlocking high-alumina firebrick over insulation board and insulating brick — the multi-layer lining Addfield credit for a 40% cut in fuel consumption against comparable machines.
- A pre-cast block impact zone in the loading chamber, taking the hit of loading so the refractory behind it does not.
- A heavy-duty front ram guard, protecting the machine where waste is loaded by JCB or telehandler rather than by hand.
- A counterbalanced lid insulated with refractory fibre: light enough to work by hand, and sealing tightly enough to keep the heat in the chamber.
- A secondary chamber holding the flue gases at a minimum of 850 °C for two seconds, with its own burner, air fans and temperature sensor.
- Two temperature-controlled main burners, switching against that sensor rather than running continuously.
- 8 mm and 10 mm seam-welded mild steel casing, finished in a two-pack paint system.
Built to order, not standard supply
- Bin tipper — electro-hydraulic, lifting and tipping over 150 kg so a load goes in hands-free.
- Fuel tank, 1,000 to 5,000 litres, for a site with no permanent fuel supply or as a backup to one.
- Data logging on the control panel, where burn records have to be kept automatically.
- De-ashing doors, mechanically loading lids, and alternate loading arrangements, built to order.
Addfield builds these to order. Ask GreenWave for them at enquiry — they are specified before the machine is made, not fitted afterwards.
Full specification
Every figure below is Addfield’s. The datasheet is their own document, published here in full.
Download the datasheetPDF, 1.5 MB · published by Addfield
- Load capacity
- 1,300 kg per batch
- Chamber volume
- 2.3 m³
- Chamber
- 2.45 × 1.1 × 0.92 m
- Loading
- Top
- Refractory
- 180 mm
- Fuel
- Diesel, LPG, natural gas or bio fuel
- Gas retention
- 2 seconds
- Afterburn
- Complies with EU legislation
- Type approval
- Defra, to EU Animal By-Products Regulations 142/2011
- Burn rate
- Under 50 kg/hour (UK); 50–75 kg/hour on export machines
- Secondary chamber
- 850 °C minimum, 2-second retention
- Thermal capacity
- 216 kW
- External size
- 3,865 × 2,900 × 2,095 mm
- Height with stack
- 3,980 mm
- Door aperture
- 2,385 × 1,055 mm
- Weight
- 4.8 tonnes
- Power supply
- 220–240 V single phase, 50/60 Hz
- Refractory rating
- 1,450 °C
- Fire brick
- Grade E23, 42.5% alumina
- Insulation board
- 25 mm
- Ash residue
- About 3% of the loaded volume
- Certification
- UKCA · CE · Defra approved · ISO 9001:2015 · ISO 14001:2015
The specification, against the rest of the range
Rows here are the figures more than one machine quotes. 5 further figures are quoted for the Addfield TB alone and are in the full specification above. Figures for Addfield TB are Addfield’s published specification. See the manufacturer’s sheet. Confirm the figures that decide a purchase with GreenWave before ordering.
What GreenWave supplies
- Installation, testing and commissioning
- Operator training and warranty
- After-sales technical support and spare parts
Delivered to 2 properties
- Amari Raaya MaldivesRaa Atoll187-Villa Resort
- Dhigali MaldivesDhigali Island, Raa Atoll180 Villas
Case study · Addfield · 2021–22
Environmentally sustainable incineration in the Maldives
Addfield’s own account of putting SB and TB incinerators onto Maldivian resort islands. It is worth reading for the conditions rather than the sales copy: resort waste arrives mixed rather than as the single stream these machines are usually specified against, so the commissioning visit in February 2022 was spent tuning the burn for that mix — and on an island where smoke or odour reaches the guests, that tuning is the difference between a working plant and a complaint.
Read the case study- SB series
- 750 kg/day
- TB series
- 1,300 kg/day
- Waste stream
- Mixed organic and inorganic
- Commissioned
- February 2022, on site
Addfield credit their regional agent Hydro Global, which shares ownership with GreenWave, for the installations described. GreenWave’s own installations are listed above and in the project register.
