Addfield TB-AB

The largest batch machine in the range at 2,000 kg a load, for properties or island facilities taking waste from more than one site.

Request a quoteSee where we have delivered
Load capacity
2,000 kg per batch
Chamber volume
4.18 m³
Chamber
2.45 × 1.6 × 0.92 m
Manufacturer
Addfield · United Kingdom
A TB-AB installed in a shed with its lid raised — the widest chamber in the batch range, at 1.6 m across.
A TB-AB installed in a shed with its lid raised — the widest chamber in the batch range, at 1.6 m across.

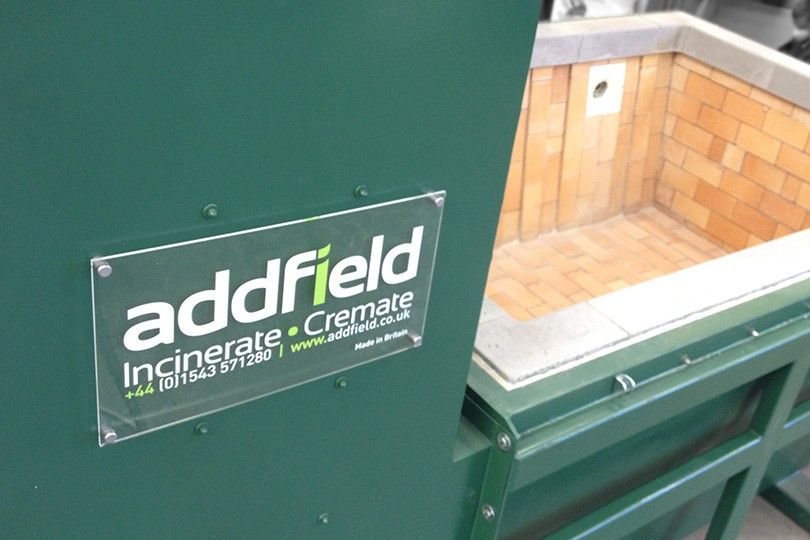

  • The maker’s plate on the burner housing, with the firebrick loading chamber behind it.
    The maker’s plate on the burner housing, with the firebrick loading chamber behind it.

How it works

The largest of the three batch machines: 2,000 kg in a single load, in a chamber half a metre wider than the TB’s. It works exactly as they do — top loading, a primary chamber lined 180 mm deep in high-alumina firebrick, a secondary chamber holding the flue gases at a minimum of 850 °C for two seconds — but at 6.5 tonnes and nearly four metres across the width.

That width is the thing to check first. It needs 3,965 by 3,490 mm of floor and just under four metres of height with the stack, which on an island is a civil-works question before it is an equipment one.

It is specified where one property is not the whole load: an island facility taking waste from more than one site, or a resort group consolidating onto a single machine.

  • A primary chamber lined 180 mm deep in interlocking high-alumina firebrick over insulation board and insulating brick — the multi-layer lining Addfield credit for a 40% cut in fuel consumption against comparable machines.
  • A pre-cast block impact zone in the loading chamber, taking the hit of loading so the refractory behind it does not.
  • A heavy-duty front ram guard, protecting the machine where waste is loaded by JCB or telehandler rather than by hand.
  • A counterbalanced lid insulated with refractory fibre: light enough to work by hand, and sealing tightly enough to keep the heat in the chamber.
  • A secondary chamber holding the flue gases at a minimum of 850 °C for two seconds, with its own burner, air fans and temperature sensor.
  • A PLC control panel — the step up from the AIC panel on the SB and TB.
  • 8 mm and 10 mm seam-welded mild steel casing, finished in a two-pack paint system.

Built to order, not standard supply

  • Bin tipper — electro-hydraulic, lifting and tipping over 150 kg so a load goes in hands-free.
  • Fuel tank, 1,000 to 5,000 litres, for a site with no permanent fuel supply or as a backup to one.
  • Data logging on the control panel, where burn records have to be kept automatically.
  • De-ashing doors, mechanically loading lids, and alternate loading arrangements, built to order.

Addfield builds these to order. Ask GreenWave for them at enquiry — they are specified before the machine is made, not fitted afterwards.

Full specification

Every figure below is Addfield’s. The datasheet is their own document, published here in full.

Download the datasheet

PDF, 4.7 MB · published by Addfield

Load capacity
2,000 kg per batch
Chamber volume
4.18 m³
Chamber
2.45 × 1.6 × 0.92 m
Loading
Top
Refractory
180 mm
Fuel
Diesel, LPG, natural gas or bio fuel
Gas retention
2 seconds
Afterburn
Complies with EU legislation
Type approval
Defra, to EU Animal By-Products Regulations 142/2011
Burn rate
Under 50 kg/hour (UK); 50–75 kg/hour on export machines
Secondary chamber
850 °C minimum, 2-second retention
Thermal capacity
288 kW
External size
3,965 × 3,490 × 2,095 mm
Height with stack
3,980 mm
Door aperture
2,385 × 1,570 mm
Weight
6.5 tonnes
Power supply
220–240 V single phase, 50/60 Hz
Refractory rating
1,450 °C
Fire brick
Grade E23, 42.5% alumina
Insulation board
25 mm
Ash residue
About 3% of the loaded volume
Certification
UKCA · CE · Defra approved · ISO 9001:2015 · ISO 14001:2015

The specification, against the rest of the range

Specifications for Addfield TB-AB and the other models in this category. Rows are every figure any model quotes; an em dash means that model does not quote it.
SpecificationAddfield SBAddfield TBAddfield TB-ABThis modelAddfield MP300Addfield G250
Load capacity750 kg per batch1,300 kg per batch2,000 kg per batch
Chamber volume1.54 m³2.3 m³4.18 m³0.76 m³5.45 m³
Chamber1.6 × 1.1 × 0.93 m2.45 × 1.1 × 0.92 m2.45 × 1.6 × 0.92 m1.6 × 0.67 × 0.7 m2.4 × 1.7 × 1.7 m
LoadingTopTopTopFrontFront
Refractory180 mm180 mm180 mm220 mm191–226 mm
FuelDiesel, LPG, natural gas or bio fuelDiesel, LPG, natural gas or bio fuelDiesel, LPG, natural gas or bio fuelDiesel, LPG, natural gas or bio fuelDiesel, LPG, natural gas, bio fuel or dual fuel
Gas retention2 seconds2 seconds2 seconds2 seconds at 1,100 °C2 seconds
AfterburnComplies with EU legislationComplies with EU legislationComplies with EU legislationComplies with EU legislationComplies with EU legislation
Type approvalDefra, to EU Animal By-Products Regulations 142/2011Defra, to EU Animal By-Products Regulations 142/2011Defra, to EU Animal By-Products Regulations 142/2011
Burn rateUnder 50 kg/hourUnder 50 kg/hour (UK); 50–75 kg/hour on export machinesUnder 50 kg/hour (UK); 50–75 kg/hour on export machinesUnder 50 kg/hour250 kg/hour
Secondary chamber850 °C minimum, 2-second retention850 °C minimum, 2-second retention850 °C minimum, 2-second retention1,100 °C minimum, 2-second retention
Thermal capacity144 kW216 kW288 kW390 kW
External size3,425 × 2,890 × 2,095 mm3,865 × 2,900 × 2,095 mm3,965 × 3,490 × 2,095 mm3,156 × 1,150 × 1,950 mm
Height with stack3,980 mm3,980 mm3,980 mm3,600 mm
Door aperture1,565 × 1,070 mm2,385 × 1,055 mm2,385 × 1,570 mm675 × 550 mm
Weight3.6 tonnes4.8 tonnes6.5 tonnes3.6 tonnes
Power supply220–240 V single phase, 50/60 Hz220–240 V single phase, 50/60 Hz220–240 V single phase, 50/60 Hz220–240 V single phase, 50/60 Hz
Refractory rating1,450 °C1,450 °C1,450 °C
Fire brickGrade E23, 42.5% aluminaGrade E23, 42.5% aluminaGrade E23, 42.5% aluminaGrade E23, 42.5% alumina
Insulation board25 mm25 mm25 mm25 mm
Ash residueAbout 3% of the loaded volumeAbout 3% of the loaded volumeAbout 3% of the loaded volume
CertificationUKCA · CE · Defra approved · ISO 9001:2015 · ISO 14001:2015UKCA · CE · Defra approved · ISO 9001:2015 · ISO 14001:2015UKCA · CE · Defra approved · ISO 9001:2015 · ISO 14001:2015UKCA · CE · Defra approved · ISO 9001:2015 · ISO 14001:2015CE marked

Rows here are the figures more than one machine quotes. 5 further figures are quoted for the Addfield TB-AB alone and are in the full specification above. Figures for Addfield TB-AB are Addfield’s published specification. See the manufacturer’s sheet. Confirm the figures that decide a purchase with GreenWave before ordering.
